Do More With Less

Servo Valves

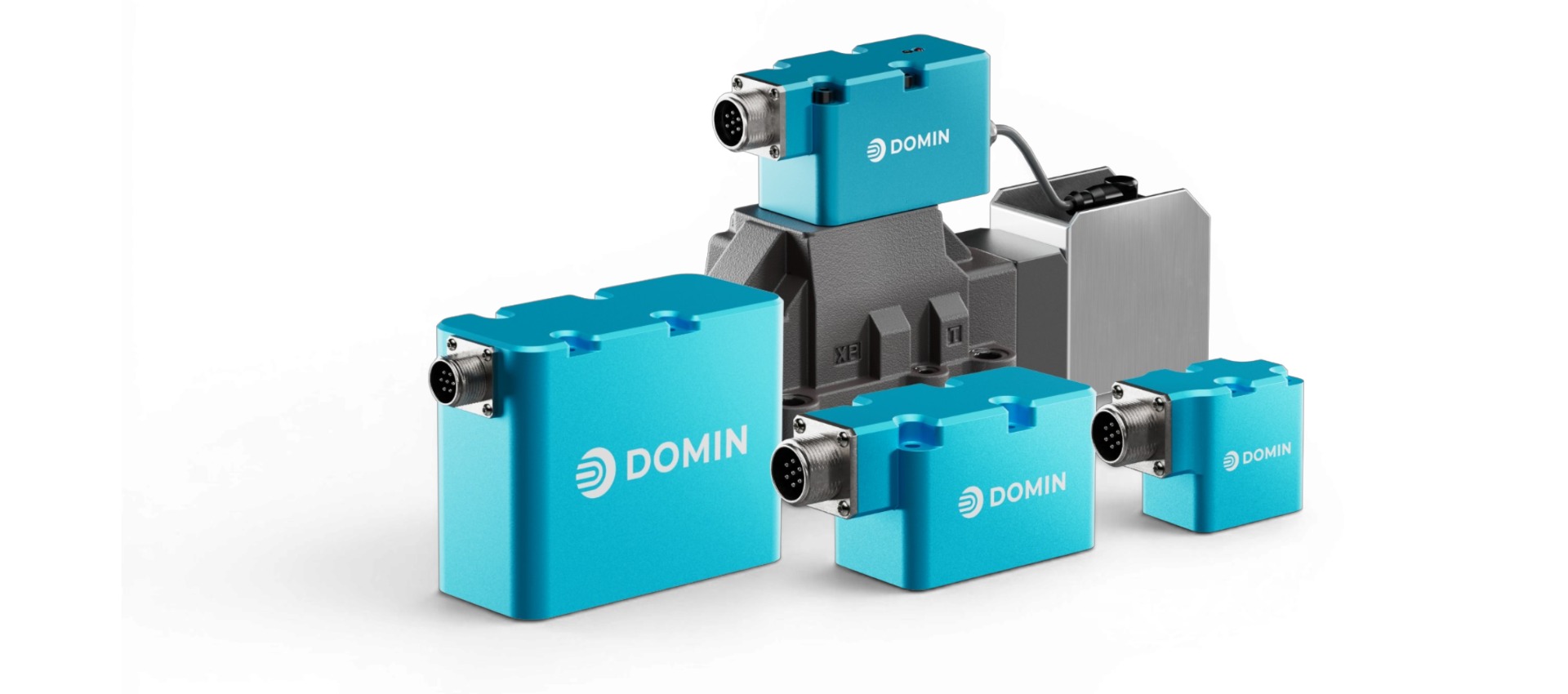

S Series

S4 Pro

The S4 Pro delivers unmatched control in the smallest package available. With a 12.2 mm port circle and weight under 300g, it enables precision control where every millimetre matters.
Trusted in robotics, motorsport and compact industrial systems, the S4 Pro brings proven Domin reliability and performance into space-constrained environments.
Available on S01 port pattern as standard.

Technical Specifications

Size
Rated Flow
Frequency Response
Response Time
S01
0.5-18 l/min
0.2-4.8 gpm
> 200 Hz
< 3 ms
Brochure
Contact Sales
S4 Pro web

S6 Pro

The S6 Pro combines exceptional power density with proven reliability, making it the benchmark valve across industrial manufacturing, test rigs and demanding automation systems.
It delivers the size, mass and dynamics of the best two-stage valves with the simplicity and low leakage of direct drive technology. Customers benefit from consistent performance, extended service life and reduced downtime.
Available on NG06 port pattern as standard. S04 adaptor also available.

Technical Specifications

Size
Rated Flow
Frequency Response
Response Time
NG06 (CETOP 03)
5-63 l/min
2.6-16.6 gpm
> 250 Hz
< 3.5 ms
Brochure
Contact Sales
S6 Pro

S10 Pro

The S10 Pro is the most efficient direct drive valve for high-flow applications, delivering up to 250 lpm while maintaining pressure and reliable operation under continuous duty cycles.
Compact and lightweight, it replaces bulky traditional servo proportional valves while sustaining bandwidth and reliability under demanding conditions. Perfect for presses, power generation and large-scale test systems, it enables more throughput with less energy and less weight.
Available on NG10 port pattern as standard.

Technical Specifications

Size
Rated Flow
Frequency Response
Response Time
NG10, S77
50-250 l/min
13-66 gpm
< 7 ms
Simple content
Brochure
Contact Sales
S10 Pro web

S12 Pro

Built for fast response and high dynamic performance, the S12 Pro uses a two-stage architecture with Domin’s proven S6 Pro valve as its pilot stage. It delivers precise control in NG16 applications where speed, accuracy, and stability are critical.

Technical Specifications

Size
Rated Flow
Frequency Response
Response Time
NG16
580 l/min
153 gpm
> 130 Hz
< 6.5 ms
Brochure
Contact Sales
Speech marks blue
Eliminated downtime.
Our customer in the aluminium sector switched their Moog 73 to S6 Pro Domin Valve, eliminating downtime and product losses with stable, adjustment-free control.
S.G.D. Engineering
Speech marks blue
The Efficient Upgrade to Pro Performance
We have evaluated the Domin S6 Pro X and have been impressed with the low phase shift, response time, and Domin’s customer support. We are looking forward to working on more opportunities in the field.
R&D Manager - Servotest Systems
Speech marks blue
Saving money with better performance
We’ve been waiting a long time for an extremely rugged servo valve that holds up in the forest industry. We didn’t expect this valve to be so cost-effective and handle extreme vibration at high cycle rates. With a very small footprint and as a seamless upgrade for Bosch, Moog, Parker, and Woodward. We now stock several valves for a wide range of applications. Saving money with better performance.
Sales Manager, Peerless Engineering
Speech marks blue
Much better than the Moog D633.
The valve was within specs (in terms of pressure drop and response time) and was much better than the Moog D633. This is very good news for the future tests we will be performing.
Head of R&D, PYTHEAS Technology
Speech marks blue
The valve performance & durability is unmatched.
Domin’s customer service is the only thing that outshines the performance of the valves. The valve’s performance, configurability & durability is simply unmatched. We’ve been able to replace several OEMS valves with a single Domin valve. We’ve put the Domin into our harshest applications & it performed flawlessly.
Vice President, The Servo Group
Speech marks blue
Best servo valve we have ever seen!
The Domin S6 Pro servo valve is the best servo valve we have ever seen. It has an incredible response time and is unbelievably tiny.
Technical Manager, Careful Hydraulics and Electronics
